Product Details
- Size: 6
- Place of Origin: China
- Brand Name:
- Model Number: 4040
- Weight: 600.000 kg

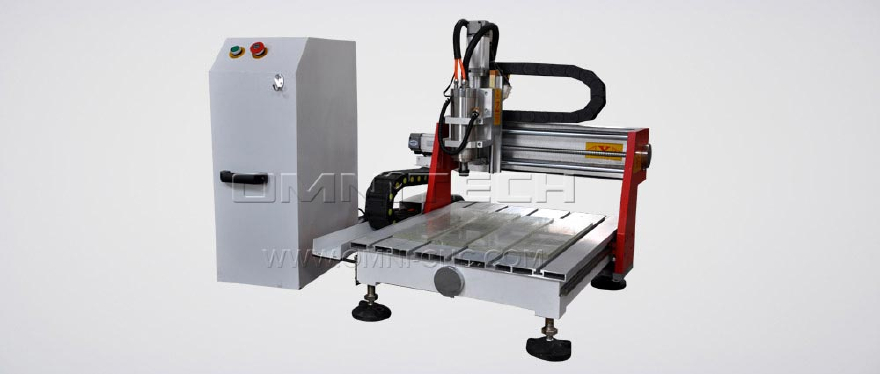

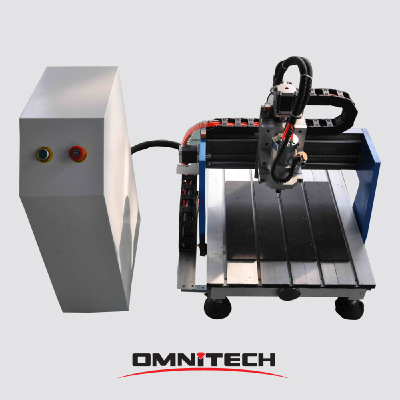

OMNI3030/4040/6090:
These models are applicable for advertisement, double layer board and scutcheon, department sign, badge and the architecture board, wood engraving, ABS brand, the engraving and cutting of acrylic, aluminum, brass, PCB,and the engraving on jade article. Click Sign & Advertising for more application info, Catalog Download, and you may curious about what people saying about OMNI.
- Size: 6
- Place of Origin: China
- Brand Name:
- Model Number: 4040
- Weight: 600.000 kg
| X,Y,Z working area | 400*400*100mm | |
| Table size | 750*750mm | |
| Spindle | 1.5kw /2.2kw Watercooling spindle, 24000rpm | |
| Inverter | Fuling frequency inverter | |
| Motor | Yako Stepper motor and driver | |
| X, Y, Z Travelling Potioning Accuracy | ±0.02/300mm | |
| X, Y, Z Travelling Repositioning Accuracy | ±0.02mm | |
| Table surface | PVC table combined Aluminum T -slot extrusion | |
| X, Y,Z structure | Ballscrews on X,Y,Z axis, round orbit on 3 axis | |
| Max Rapid Travel Rate | 8000mm/min | |
| Max working speed | 6000mm/min | |
| Working voltage | AC220V, single phase | |
| Command languages | G code | |
| Control system | DSP handle remote controller with USB interface,with russia language | |
| Software | Artcam English version | |
| Tool sensor | Tool calibration | |
| Package | In wooden box: 1100*1100*1000mm (1.21CBM) | |
| Net weight | 110KGS | |
| Gross weight | 170KGS | |
