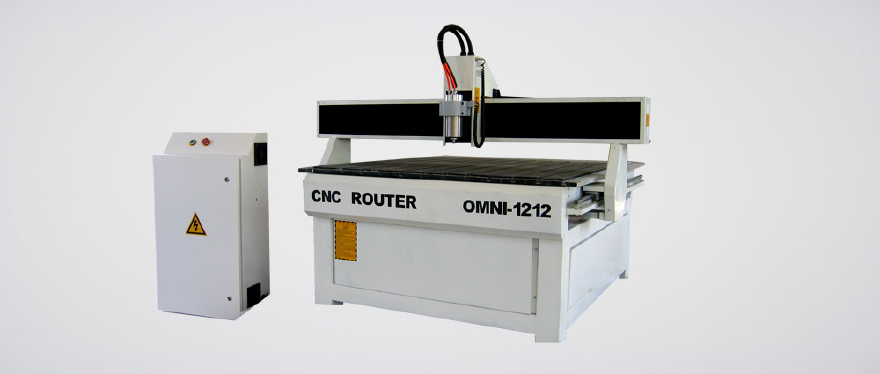

OMNI1212/1224:
These models are ideal for any size shop requiring a compact machine to run small routing jobs or to be used as an educational tool. This model is with ballscrew driving on 3 axis and the control system could be PC platform or hand-held-controller with USB port.
This model is with heavy duty and can be used in the industries of Woodworking, Custom Millwork, Fixtures, Channel Letters, Sign Making, Educational, Model Making, Prototyping, Solid Surface Production, Aerospace, Foam Packaging, Plastic Packaging Equipment Manufacturers, PCB Fabricators, Engraving, Conveyor Manufacturers, Artistic Carvings, Name Tags, Puzzles etc.
- Size: 10
- Place of Origin: China
- Brand Name:
- Model Number: 1212
- Weight: 1200.000 kg
| X,Y,Z working area | 1200*1200*200mm |
| Working table | PVC aluminum T slot table |
| X, Y, Z structure | Ballscrew, Hiwin rail linear bearing |
| Spindle | 2.2 kw watercooling/aircooling spindle |
| Spindle Protection Device | digital spindle temprature monitor |
| Motor | stepper motor |
| Driver | Yako driver |
| Inverter | Delta from Taiwan |
| X, Y, Z Travelling Potioning Accuracy | ±0.05/300mm |
| X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| Max Rapid Travel Rate | 50,000mm/min |
| Max working speed | 25,000mm/min |
| Working voltage | AC110V/ 220V / 380V |
| Control system | DSP handle controller |
